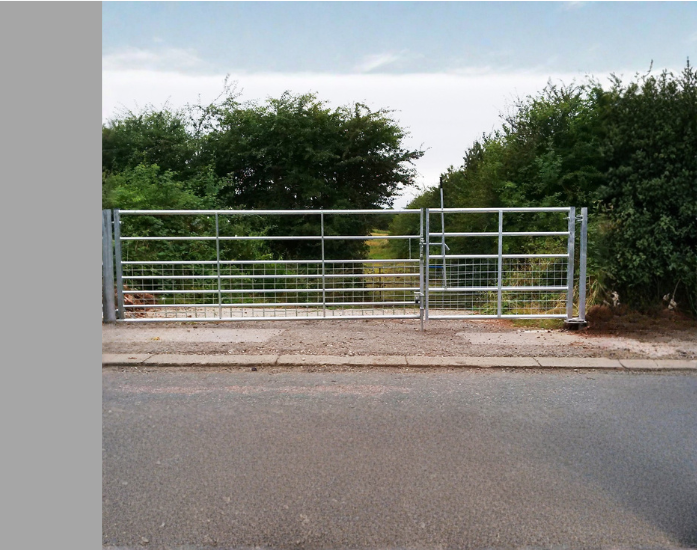

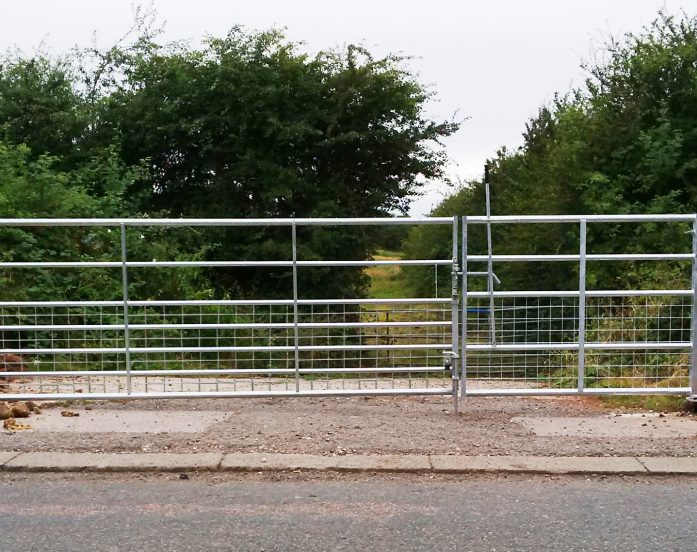

Ravensden Combination Gate
The Ravensden 2-in-1 steel combination gate has been designed for locations where authorised vehicle access is still required on a footpath or bridleway.The Compton bridle gate allows for public access whilst the lockable field gate can be used by authorised users.
Product added to your enquiry list
Product Details
Galvanised steel 5 rail gate with weld mesh to lower half
Integral steel ‘h’ frame gate post
Self-closing heavy duty hinge system
Bridleway handle and Easy-Access latch with straight handle
Field gate conversion kit includes padlock-able drop bolt
Anti-tamper fixings used throughout
One-way opening conversion kit available as an optional extra
Gate height at 1.25m, gate width at 1.5m, overall width at 1.65m
This gate is not supplied with the vehicular access gate, see steel field gates
Standard specification includes stock proof mesh and hot-dipped galvanised finish
Gate width compliant with BS 5709:2018 and the Equality Act
The field gates are available in widths from 2100mm to 4200mm
