What is an H Frame on a Rights of Way Gate?

What is an H Frame on a Rights of Way Gate?

On many Bison Rights of Way gates, the most important support feature is the part you barely see.

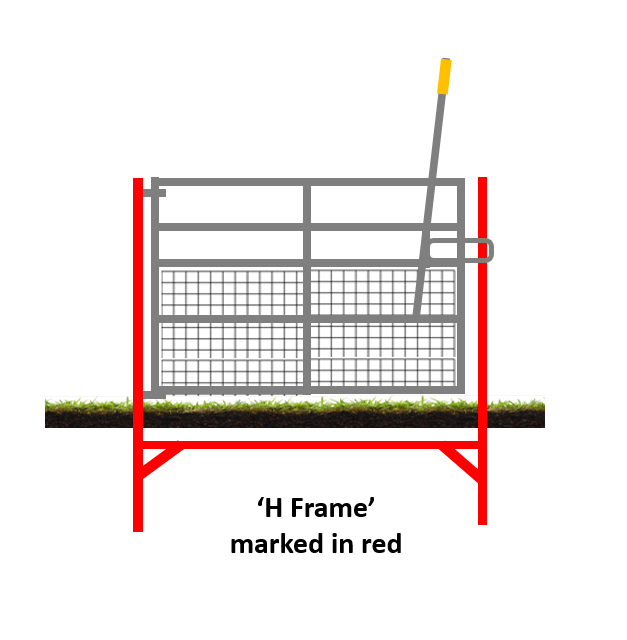

An H frame is a steel base frame that connects the hanging post and closing post below ground level. The cross section sits just under the surface, holding the posts at the correct spacing and helping prevent them from moving out of line over time.

It is a simple detail, but a useful one. Rights of Way gates are often installed on rural footpaths, bridleways, field edges, nature reserves and other sites where ground conditions can be wet, uneven or heavily used. A gate may be opened, pushed, pulled and closed thousands of times, so post alignment matters.

Why the H Frame Matters

Bison ROW gates are self-closing. For that feature to work properly, the hanging post needs to stay upright and correctly aligned. If the post begins to lean, the gate may stop closing cleanly, the latch may miss, or the whole thing can become awkward to use.

The H frame helps avoid that problem by tying the main posts together as one stronger structure. It keeps the gate opening consistent, supports the hanging and slamming posts, and reduces the risk of movement caused by regular use.

In short, the H frame helps the gate stay where it was installed, which is always a charming quality in a gate.

Built for Long-Term Use

For councils, Rights of Way teams, estates, contractors and access managers, this small steel frame can make a big difference. It supports reliable self-closing operation, helps reduce future adjustment, and improves the long-term performance of pedestrian gates, bridle gates and other rural access gates.

The H frame is not a flashy feature, but it is one of those practical engineering details that helps a Bison gate keep working properly after the installation team has left site.
